WE RESOLVE THE ROOT CAUSE, NOT THE SYMPTOMS

ROTORDYNAMICS EXPERTISE IS AT THE ROOT
OF OUR ROOT CAUSE ANALYSIS




Our specialty is rotordynamics, and we have 30+ years of experience focusing on turbine- generator and bearing rotordynamics analysis.

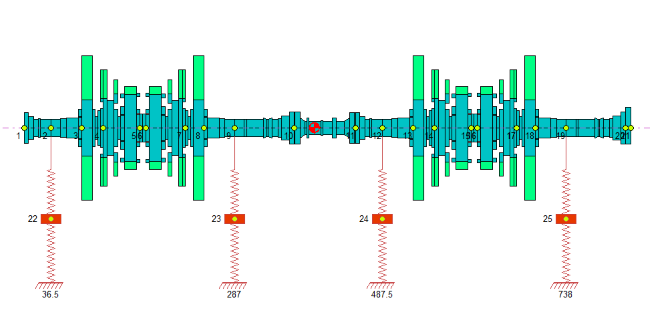

We perform rotordynamics design verification and modeling using finite element analysis with Dyrobes software, including:

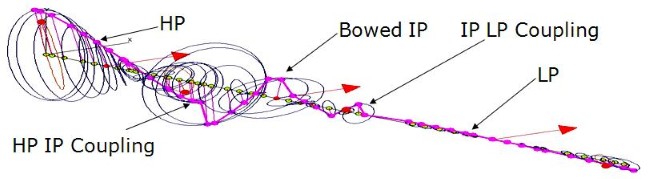

  • Rotor train lateral and torsional resonances and
    mode shapes
  • Critical speed calculations
  • Unbalance responses
  • Transient and thermal testing and analysis
  • Modal testing and analysis
  • Blade resonance impact testing
  • Rotor and bearing stability analysis
  • Rotor alignment
  • Catenary optimization
  • Bearing loading calculation and optimization
We can also determine bearing design modifications to ensure stable operation.
Our rotordynamics analysis is the second key step of a complete rotor evaluation (after runout evaluation) to guarantee a smooth outage and startup. It also directly connects to our unique balancing method, which is the third key step.

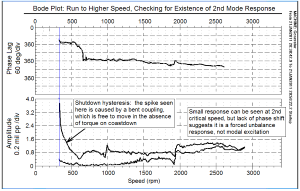

We utilize data that most others ignore, and apply it to our rotor-train modeling and rotordynamics behavior analysis. We collect and analyze full vibration data during operation before shutdown, and during shutdown, if available. We also collect and analyze DC shaft centerline data, from standstill, to lift oil, at slow roll, to full speed and to full load. This data helps provide the most complete picture of the rotors’ behavior and can often point to the root cause of a problem.

By modeling the rotor(s) and analyzing rotordynamic behavior, catching problems with eccentricities early on through rotor runout data, and applying our 2N+1 balancing method , we can bring any rotor to smooth running condition.
